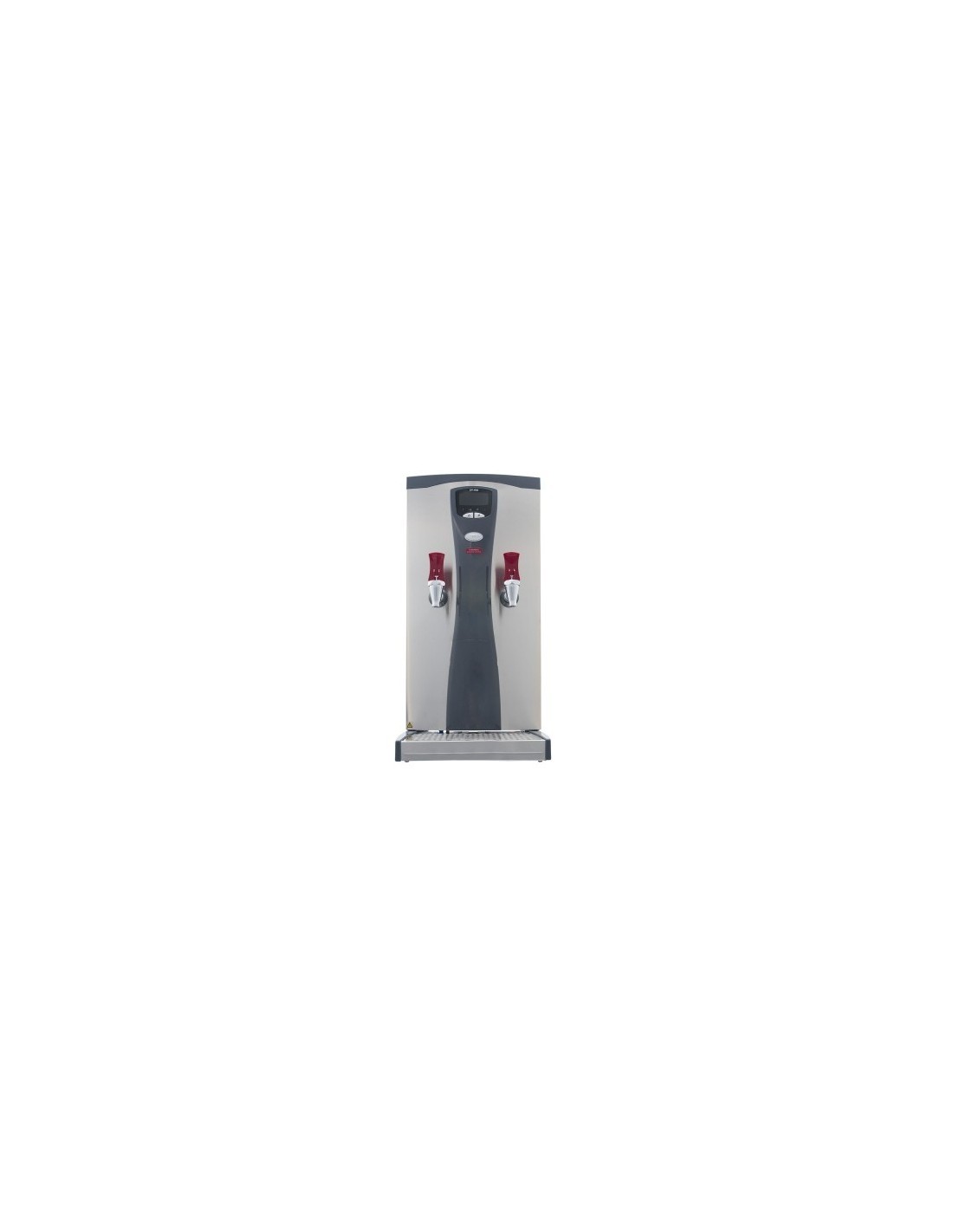

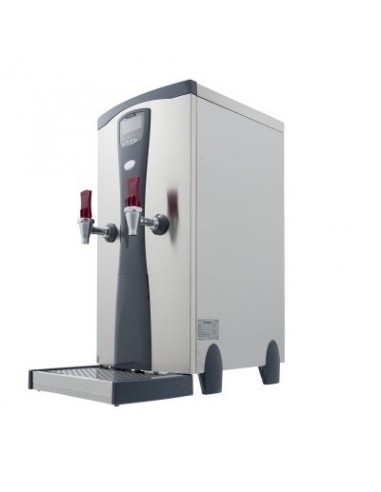

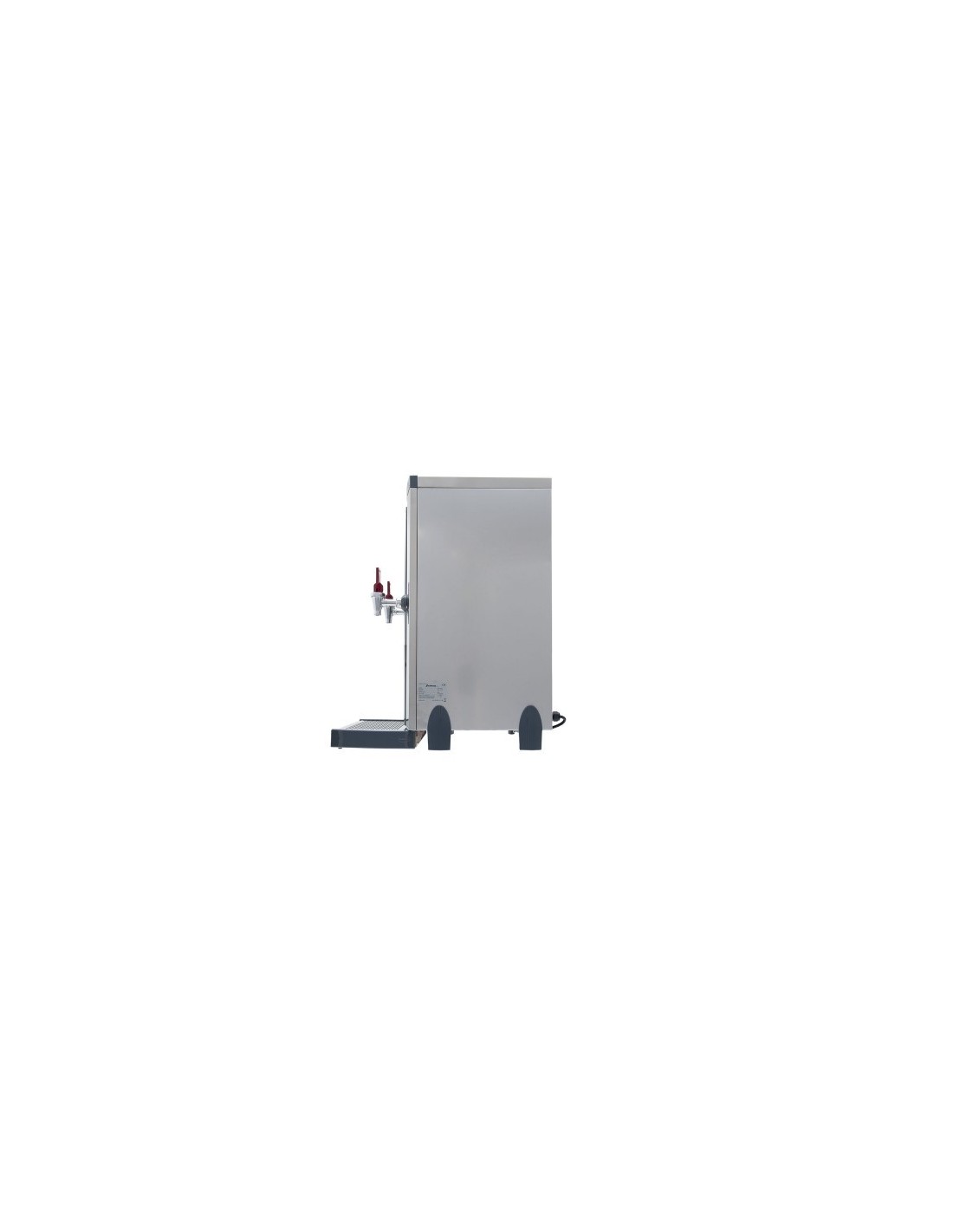

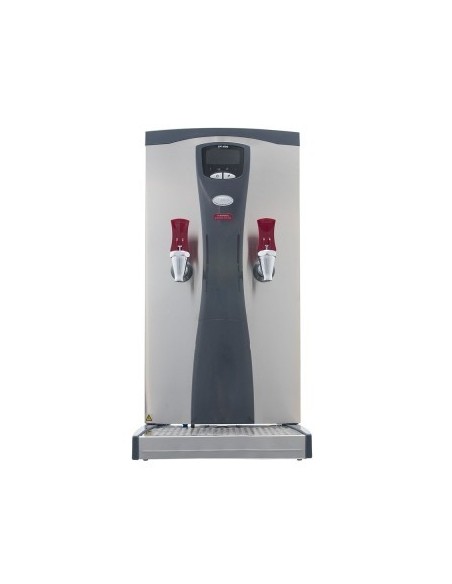

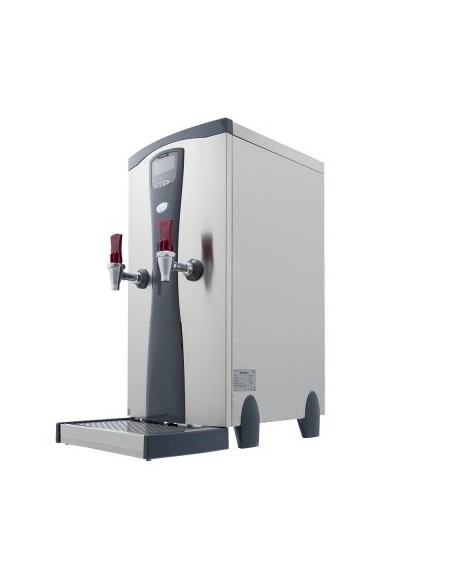

CPF520-6 Water Boiler

Features and Benefits · Integral seven day programmable timer · Built-in multi-purpose filtration · Energy saving ECO mode · Temperature programmable between 80°C - 98°C · Two tier comprehensive diagnostics system · Integral stainless steel drip tray included · Programmable filter monitor from 2,000 — 19,500 litres Plumbing Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow. Electrical Supplied with 1.6 metres of cable for connection to a 230 volt supply with a suitable break capacity of 30 amps. Construction Brushed stainless steel case. Stainless steel heating chamber. Low voltage switching. Two safety cut-outs. Installation Easy to install on a stable worktop.

SPECIFICATION FOR CPF520-6 SureFlow Plus Height (mm)705 Width (mm)360 Depth (mm)555 Tap clearance to drip tray (mm)304 Rear connection clearance (mm)45

TECHNICAL DATA FOR CPF520-6 SureFlow Plus * Power loading (kW)6 Heat-up time (mins)24 Recovery Rate (litres)1 Stand by Power (kW/h)0.1 Rapid Draw-Off (litres)19 Hourly Output (litres)57 Hourly Output (cups)340 * Based on 6 Cups Per Litre
