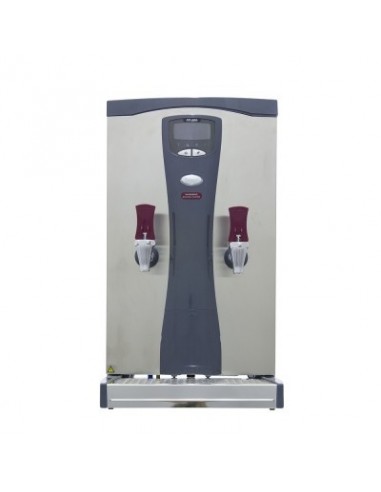

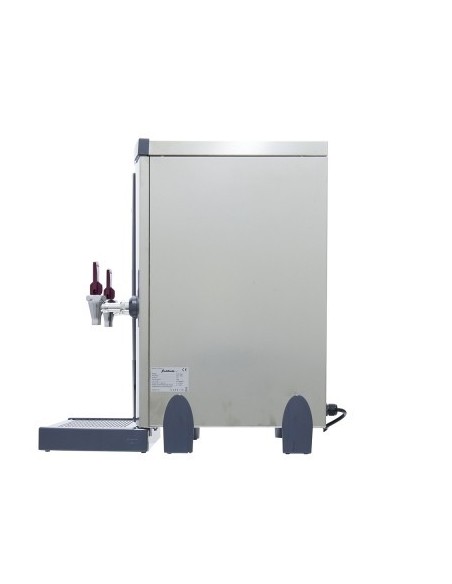

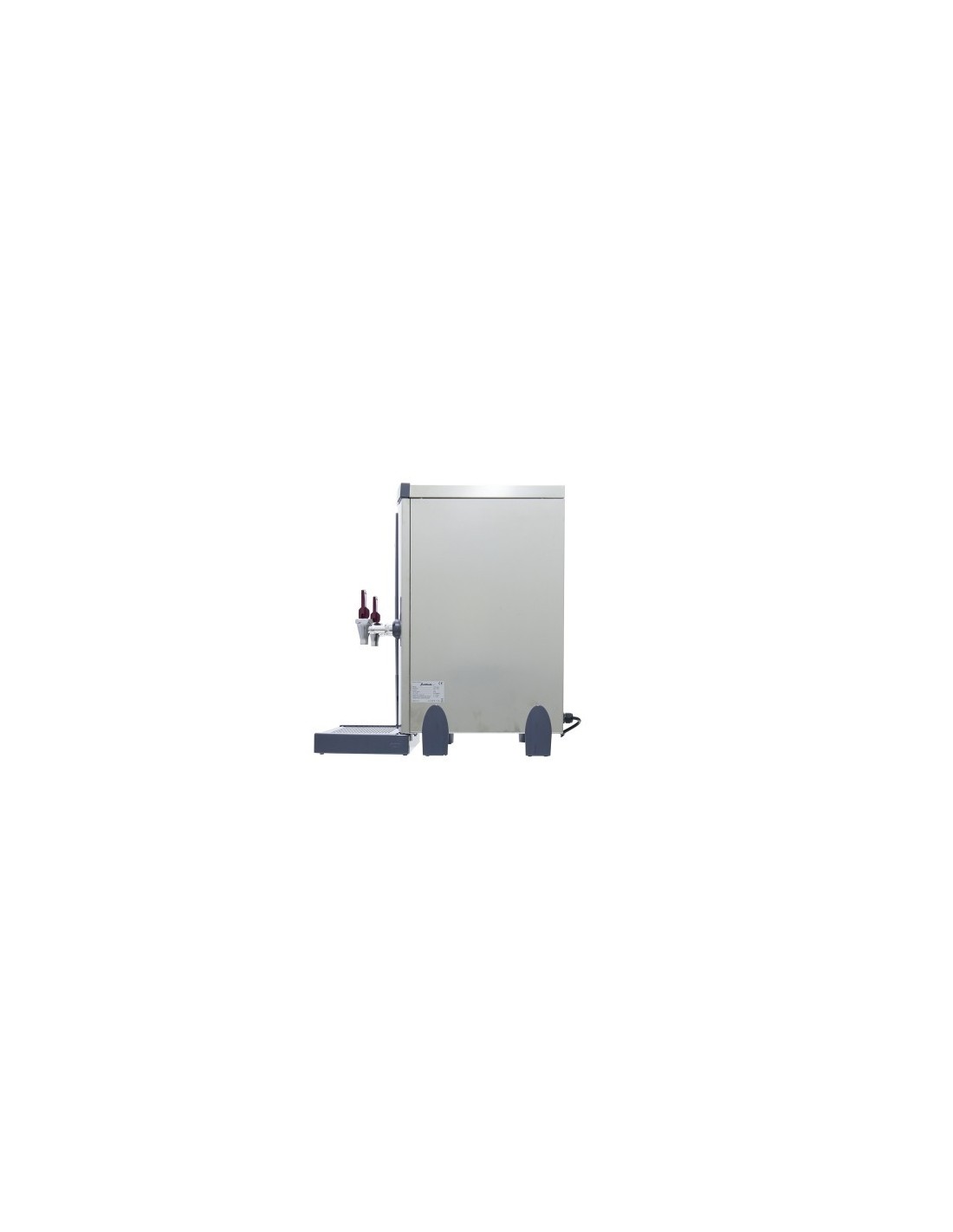

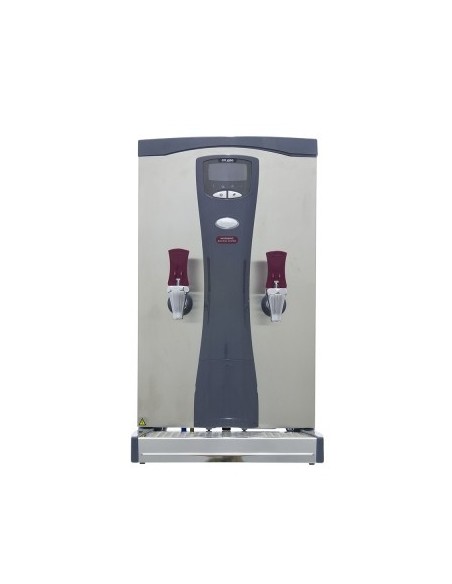

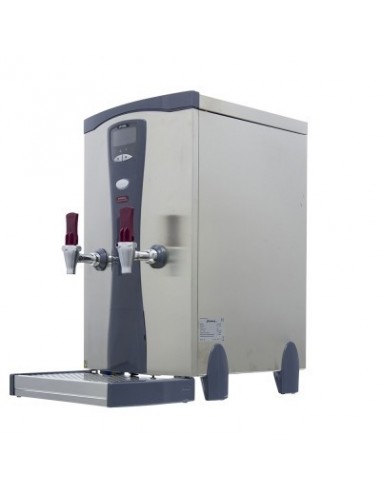

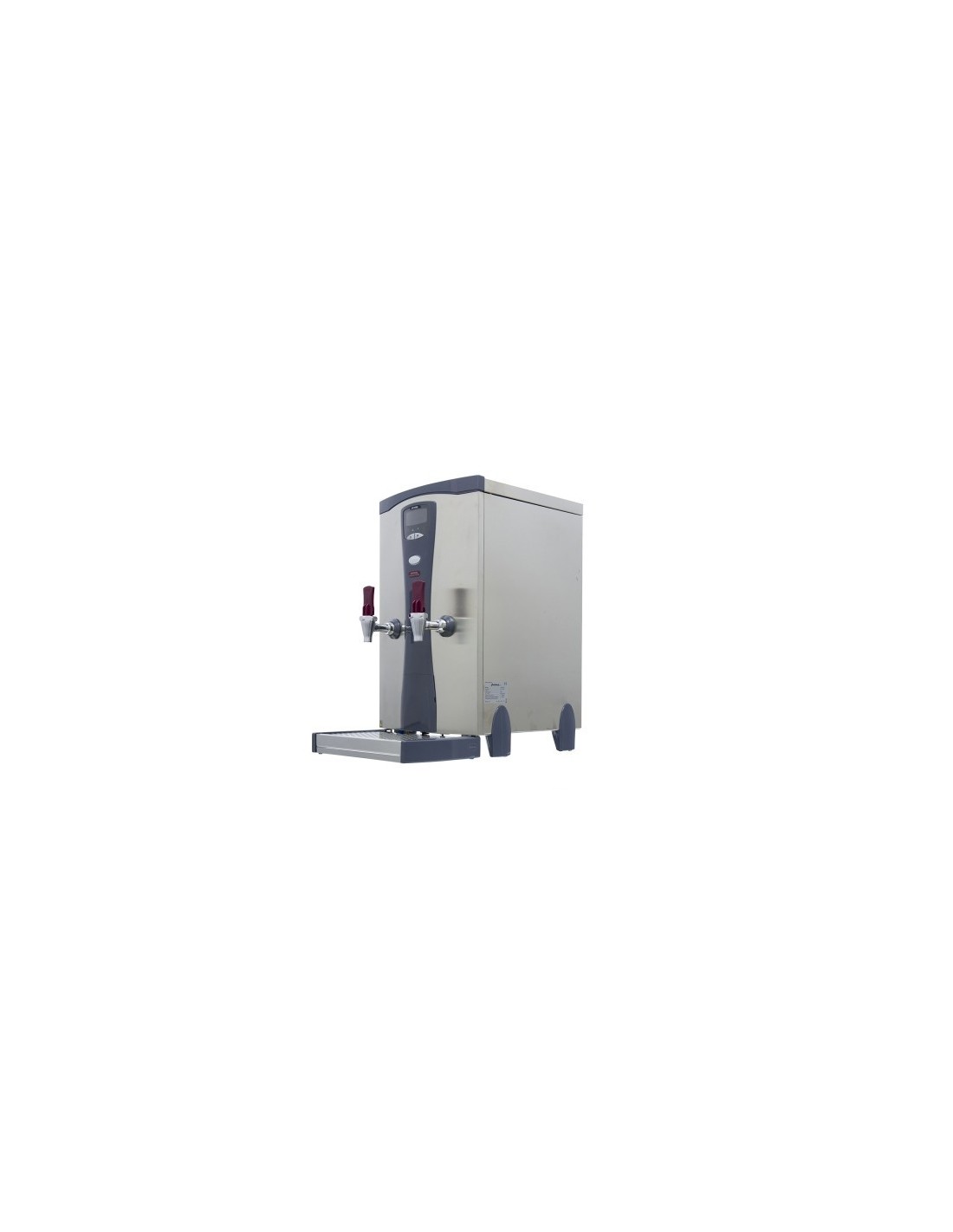

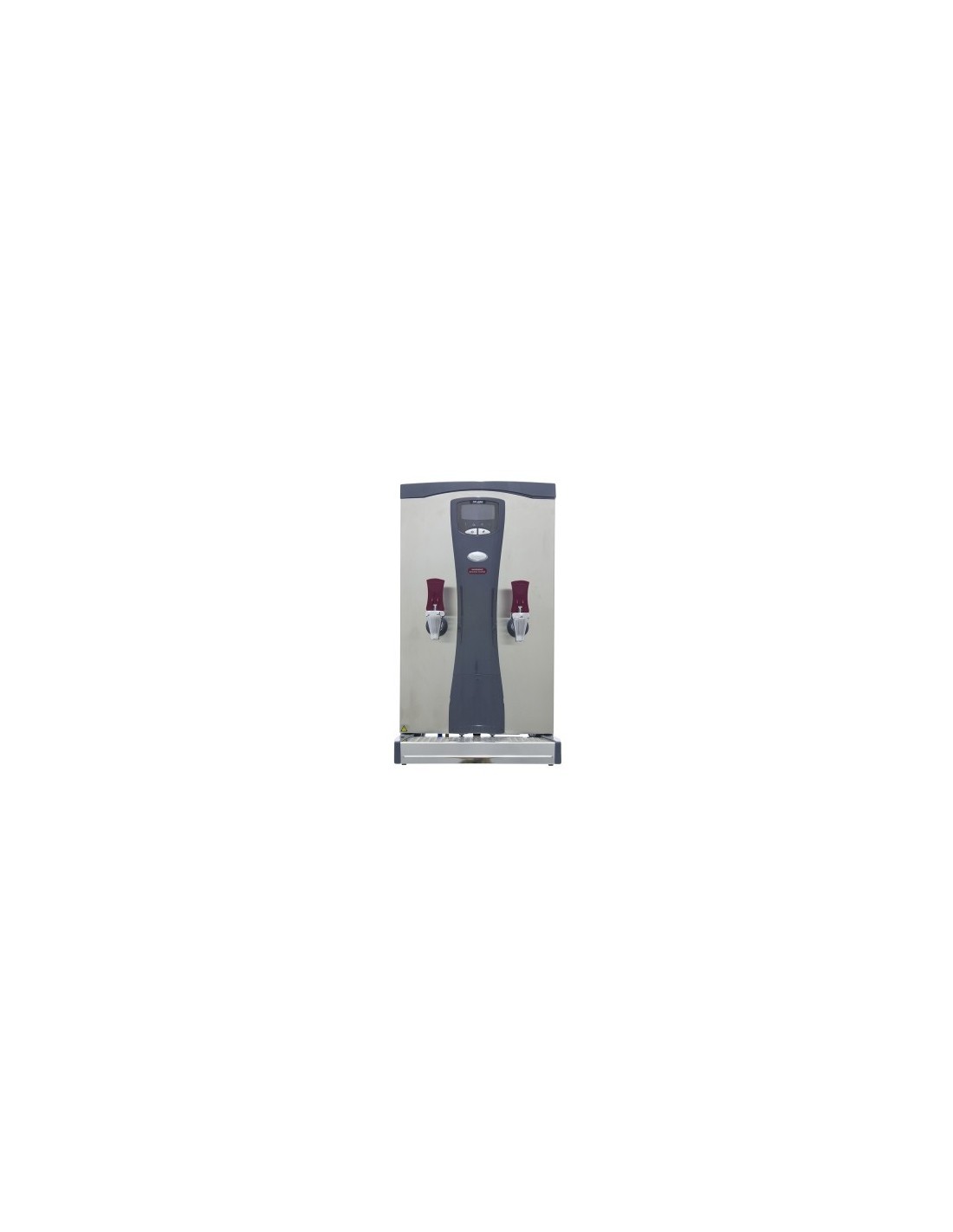

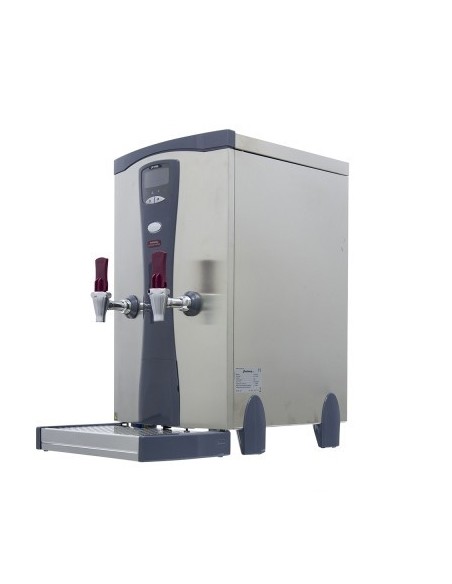

CPF4100-6 Water Boiler

Features and Benefits · Integral seven day programmable timer · Built-in multi-purpose filtration · Energy saving ECO mode · Temperature programmable between 80°C - 98°C · Two tier comprehensive diagnostics system · Integral stainless steel drip tray included · Programmable filter monitor from 2,000 — 19,500 litres Installation Easy to install on a stable worktop. Plumbing Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow. Electrical CPF2100, CPF210, CPF4000-3 models: Fitted with 1.75 metres of cable and a 13amp moulded plug. CPF300, CPF4000-6 & CPF6000-6 models: Supplied with 1.6 metres of cable for connection to a 230 volt supply with a suitable break capacity of 30 amps. Construction Brushed stainless steel case. Stainless steel heating chamber. Low voltage switching. Two safety cut-outs. Installation Easy to install on a stable worktop.

SPECIFICATION FOR CPF4100-6 SureFlow Plus Height (mm)610 Width (mm)360 Depth (mm)555 Tap clearance to drip tray (mm)200 Tap clearance to drip tray (mm)45

TECHNICAL DATA FOR CPF4100-6 SureFlow Plus* Power loading (kW)6 Heat-up time (mins)24 Recovery Rate (litres)1 Rapid Draw-Off (litres)19 Rapid Draw-Off (cups)114 Hourly Output (litres)57 Hourly Output (cups)342 Stand by Loss (kW/h)0.09 * Based on 6 Cups Per Litre
