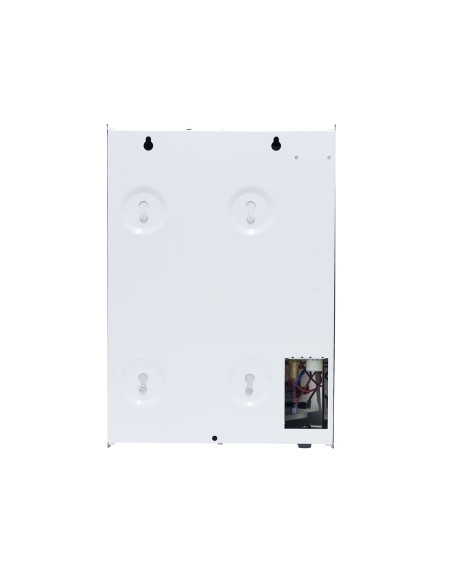

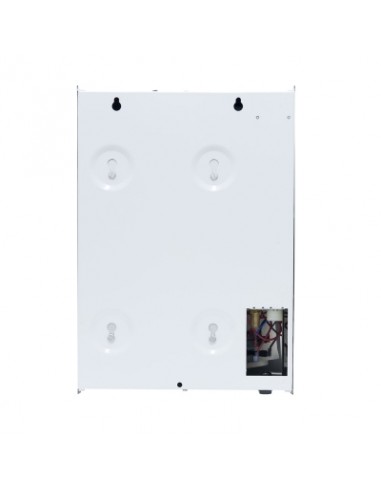

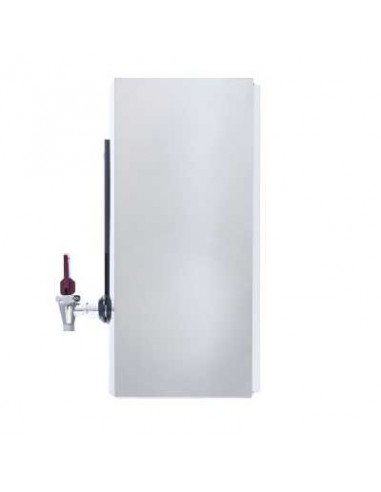

WM7SS Wall Mounted Boiler Stainless Steel

Features and Benefits · Integral 7 day programmable timer · Programmable filter change indicator · Energy Saving ECO mode · Electronic temperature control, programmable between 80°C - 98°C · Comprehensive diagnostics system Installation As per instructions supplied. Plumbing Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure. Electrical To be connected to 230 volt 13 amp or 30 amp (6kW) supply. Construction Stainless steel or impact resistant thermoplastic case. Stainless steel heating chamber. Low voltage switching. 2 safety cut-outs. Approvals WRAS approved.

SPECIFICATION FOR WM7SS Wall Mounted SureFlow Height (mm)456 Width (mm)320 Depth (mm)225 Tap Depth (mm90

TECHNICAL DATA FOR WM7SS Wall Mounted SureFlow* Power loading (kW)3 Heat-up time (mins)20 Recovery Rate (litres)0.5 Rapid Draw-Off (litres)7 Rapid Draw-Off (cups)42 Hourly Output (litres)28 Hourly Output (cups)168 Stand by Loss (kW/h)0.1 * Based on 6 Cups Per Litre
