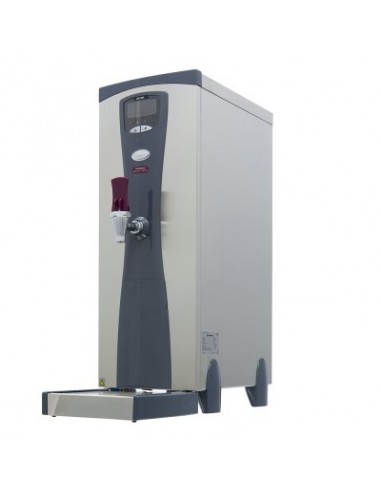

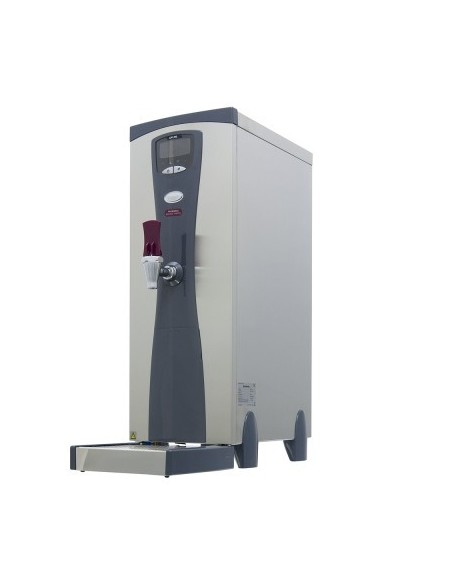

CPF2100 Water Boiler

Features and Benefits · Integral seven day programmable timer · Built-in multi-purpose filtration · Energy saving ECO mode · Temperature programmable between 80°C - 98°C · Two tier comprehensive diagnostics system · Integral stainless steel drip tray included · Programmable filter monitor from 2,000 — 19,500 litres Installation Easy to install on a stable worktop. Plumbing Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow. Electrical Fitted with 1.75 metres of cable and a 13amp moulded plug. Construction Brushed stainless steel case. Stainless steel heating chamber. Low voltage switching. Two safety cut-outs.

SPECIFICATION FOR CPF2100 SureFlow Plus Height (mm)610 Width (mm)260 Depth (mm)555 Tap clearance to drip tray (mm)200 Rear connection clearance (mm)45

TECHNICAL DATA FOR CPF2100 SureFlow Plus* Power loading (kW)3 Heat-up time (mins)32 Recovery Rate (litres)0.5 Rapid Draw-Off (litres)10 Rapid Draw-Off (cups)60 Hourly Output (litres)28 Hourly Output (cups)168 Stand by Loss (kW/h)0.084 * Based on 6 Cups Per Litre
