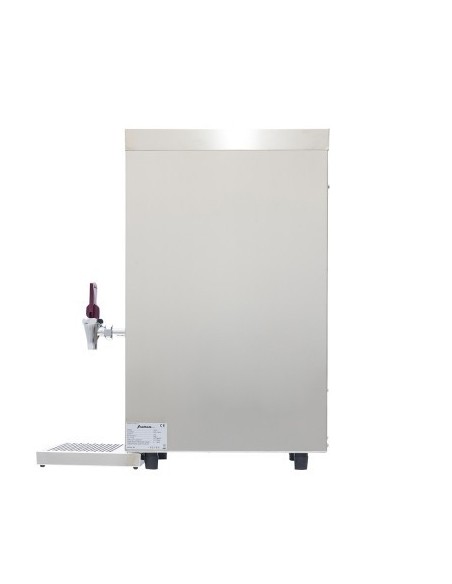

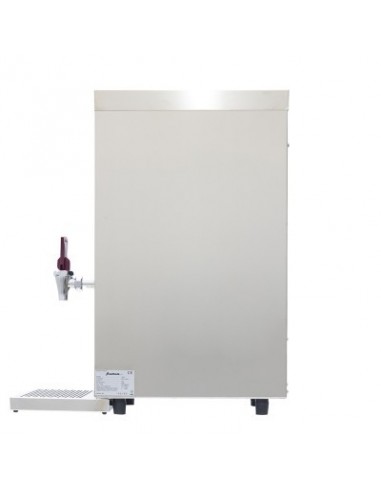

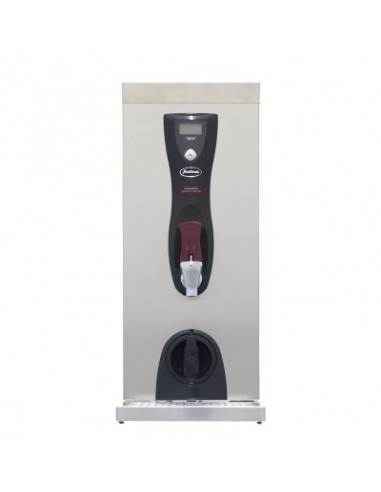

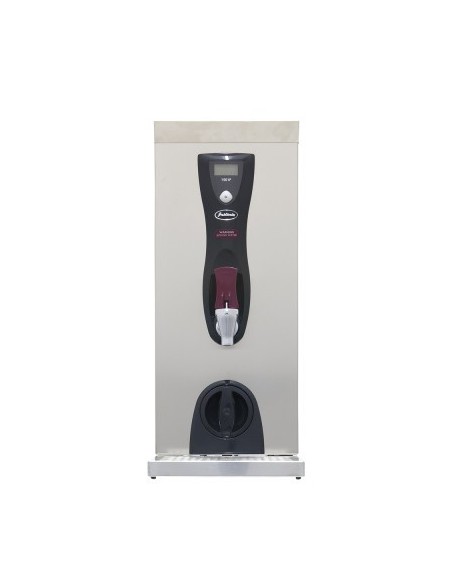

Rental 1501F Water Boiler

Features and Benefits · Basic fault self-diagnosis with LCD read out · Built-in multi-purpose filtration · Electronic temperature control for constant temperature at around 97°C · Easy access for service and cleaning · Long-life incoloy elements · Boil dry protection · Stainless steel drip tray included · 28 litres per hour output Installation Easy to install on a stable worktop. Plumbing Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear (optional additional kit) or front overflow as standard. Electrical To be connected to 230 volt supply with a suitable break capacity of 13 amps. Construction Brushed stainless steel case. Stainless steel heating chamber. Low voltage switching. Two safety cut-outs.

SPECIFICATION FOR 1501F SureFlow Height (mm)610 Width (mm)252 Depth (mm)518 Tap clearance to drip tray (mm)190 Rear connection clearance (mm)50 Depth excluding drip tray (mm)362

TECHNICAL DATA FOR 1501F SureFlow* Power loading (kW)3 Heat-up time (mins)32 Recovery Rate (litres)0.5 Stand by Power (kW/h)0.087 Rapid Draw-Off (litres)10 Rapid Draw-Off (cups)60 Hourly Output (litres)27 Hourly Output (cups)162 * Based on 6 Cups Per Litre
